What is the difference between HGH (Square) and HGW (Flange) blocks?

HGH blocks have a square, high-profile design with a narrower mounting surface, making them ideal for space-constrained or high-rigidity setups. HGW blocks have a wider flange mounting surface, which offers better lateral stability and allows for mounting from the top or bottom.

Does this block require specific rail compatibility?

Yes, the HGH 25CA BG is specifically designed to fit HGR25 series linear rails. Using TQI-branded rails is recommended to ensure the precision ball tracks align perfectly for optimal performance and life.

How often should I lubricate the HGH 25CA block?

For standard industrial use, we recommend re-greasing every 100km of travel or every 3 months. In high-debris environments like stone cutting or woodworking, more frequent maintenance intervals are required to clear internal contaminants.

CNC Router Accessories✓ In Stock & Ready to Ship

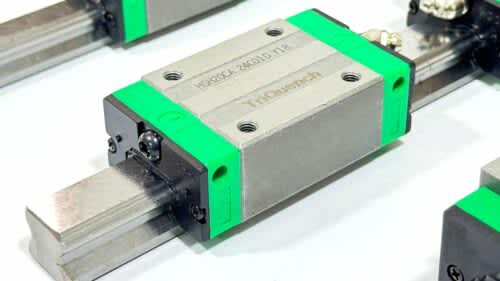

HGH 25CA BG LM Block | High-Precision Square Type Linear Carriage

SKU / Model: TQ-LM-HGH25CA

Power RatingIndustrial Grade

Max SpeedUp to 60,000 RPM

Cooling MethodStandard Cooled

Interface / SpecP4 Precision Grade

The TriQuench HGH 25CA BG is a premier Square Type (HGH) linear motion carriage specifically designed for heavy-duty industrial environments. Engineered with a 'High Load' (CA) configuration, this block provides exceptional structural rigidity and optimized load distribution across its four rows of ball bearings. Its square profile allows for compact mounting in dense machinery setups while maintaining a high torque-resistant architecture, making it the ideal choice for the primary axes of large-format CNC routers, plasma cutters, and automated bridge saws.

Shop Online

Detailed Technical Specifications

Technical Parameter	Engineering Specification Value
CATEGORY & BRAND	CNC Router Accessories \| TriQuench India

Explore Compatible Equipment

Advanced Engineering Analysis: HGH 25CA BG LM Block | High-Precision Square Type Linear Carriage

HGH 25CA BG LM Block | High-Precision Square Type Linear Carriage

Detailed Technical Specifications
