CNC Grinding Spindle and Belt Driven Spindle Manufacturer
TriQuench India is an established custom CNC spindle manufacturer specializing in heavy-duty grinding spindles, motorized electro-spindles, and high-rigidity belt-driven spindle assemblies. Headquartered in Ahmedabad, Gujarat, we design and manufacture OEM-spec spindle cartridges with sub-3 micron run-out tolerances, P4 super-precision angular contact bearings, and ISO 1940 G0.4 dynamic balancing for precision toolmaking and heavy metal removal.
Precision Spindle Product Matrix
Explore our manufactured line of high-precision grinding spindles, belt-driven milling cartridges, and custom OEM spindle solutions.
Internal Bore Grinding Spindles
High-RPM Micro Grinding & Bore Finishing
Engineered specifically for internal diameter (ID) grinding applications requiring speeds up to 60,000 RPM, minimal thermal drift, and rigid vibration damping.
External Surface Grinding Spindles
Heavy Wheel Flange & High Radial Load Stability
Built with oversized alloy steel shaft journals and heavy-duty front bearing arrangements to absorb high radial cutting forces during surface and cylindrical grinding.
High-Rigidity Belt-Driven Spindles
Customizable Pulley Ratios & Heavy Material Removal
Mechanical spindle cartridges designed for belt coupling to external AC motors, providing exceptional torque multiplier ratios for heavy metal milling and grinding.
High-RPM Motorized Electro-Spindles
Direct-Drive Zero-Vibration Built-in Motor Units
Compact built-in motorized electro-spindles delivering up to 40,000 RPM with liquid jacket cooling and high dynamic balancing accuracy.
Custom OEM Spindle Cartridges
Tailored to Machine Tool Builder Drawings
Custom engineered spindle assemblies manufactured directly from client CAD models, matching precise mounting dimensions, housing styles, and drive configurations.
Manufacturing Engineering & Quality Control

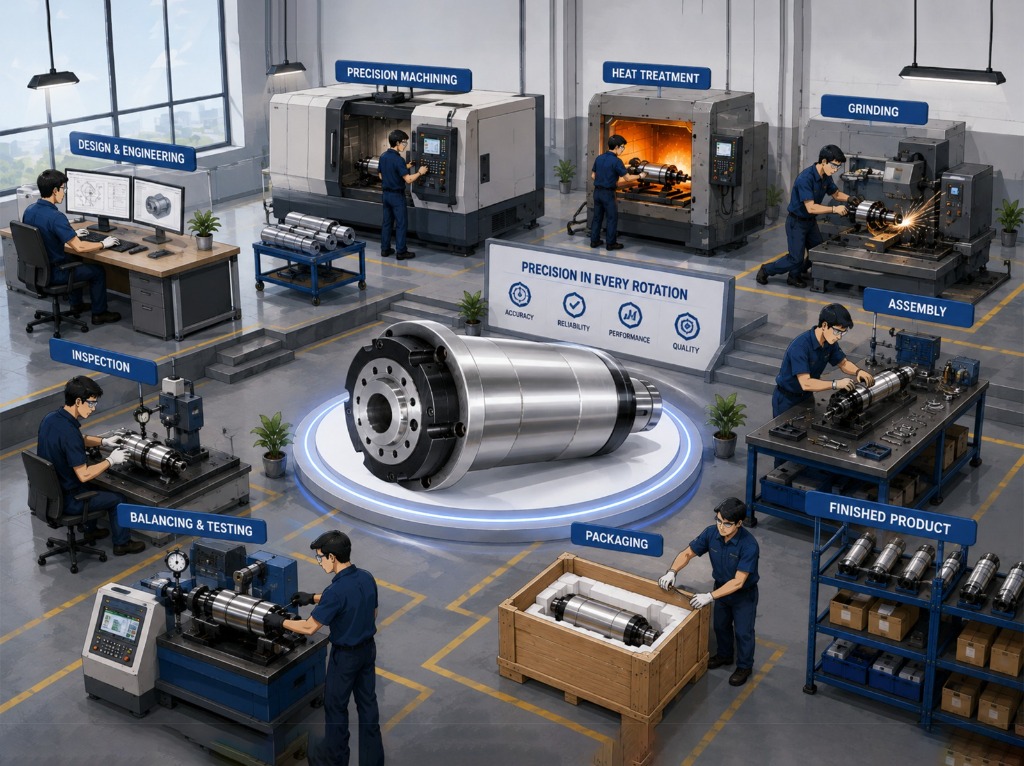

TriQuench India manufactures grinding and belt-driven spindles using state-of-the-art CNC grinding machines, climate-controlled cleanroom bearing assembly, and automated multi-plane dynamic balancing:
Manufacturing Specification Matrix
| Shaft Run-Out Tolerance | < 0.003 mm (Sub-3 Micron) |
| Speed Capabilities | 3,000 RPM up to 60,000 RPM |
| Dynamic Balance Grade | ISO 1940 G0.4 Standard |
| Bearing Precision Class | P4 / ABEC-7 Grade |
| Housing Metallurgy | Case-Hardened Alloy Steel |
| Quality Certification | 100% Metrology Tested |
5-Step Custom Spindle Production Workflow
From initial CAD engineering to cleanroom assembly and high-speed dynamic balancing, our manufacturing workflow ensures absolute precision.
Spindle Manufacturing Engineering Videos
Watch our engineering team machine custom grinding spindles and conduct 24-hour high-speed thermal run-in tests.
Grinding Spindle Shaft Machining
CNC turning, induction hardening, and thread grinding for internal bore grinding spindles.
ISO G0.4 Dynamic Balancing & Run-In
24-hour continuous speed run-in testing measuring bearing temperatures and vibration limits.
Frequently Asked Questions
Insights into custom spindle fabrication, lead times, OEM integration, and quality guarantees.
Standard catalog belt-driven spindles ship within 2 to 3 business days from TriQuench India. Custom engineered grinding spindles featuring tailored housing dimensions, specific pulley ratios, or specialized shaft extensions require 2 to 4 weeks for complete precision fabrication, assembly, and ISO 1940 G0.4 dynamic balance testing.
Yes, TriQuench India partners directly with OEM machine builders, precision toolmakers, and CNC retrofitters to manufacture custom-built grinding and milling spindle cartridges. We tailor mounting flange dimensions, shaft extensions, bearing configurations, and drive pulley ratios to match your exact machine tool engineering requirements with guaranteed sub-3 micron run-out tolerances.
Our custom-manufactured spindles are deployed in aerospace component machining, automotive transmission grinding, heavy die and mold toolmaking, medical device fabrication, and high-precision woodworking machinery across India and international industrial markets requiring continuous heavy material removal.
Every spindle cartridge manufactured by TriQuench India utilizes high-grade alloy steel housings, super-precision angular contact bearings (P4/ABEC-7 grade), and synthetic high-speed grease lubrication. All assemblies undergo ISO 1940 G0.4 dynamic balancing to guarantee sub-3 micron shaft run-out and minimum thermal vibration under continuous operating loads in heavy manufacturing.
Request Custom Manufacturing Quote
Send Engineering Inquiry
Fill out the form below for fast quotations, CAD model requests, or spindle repair diagnostics.
TriQuench India makes and repairs CNC grinding spindles and belt driven grinding spindles for cylindrical, surface and internal grinding machines. Send the wheel size, speed, power and mounting dimensions, or your worn spindle, and we quote a new spindle or a rebuild.
CNC Grinding Spindle: overview
This page covers CNC grinding spindle manufacturing for machine builders and grinding spindle repair for users. A belt driven grinding spindle is common on cylindrical grinding machine spindle heads, where the motor drives the wheel spindle through a flat or poly-V belt. Grinding spindle price depends on wheel size, speed, bearing arrangement and whether it is new or rebuilt; ask for a quote with your machine details.
CNC Grinding Spindle: frequently asked questions
Do you offer grinding spindle repair?
Yes. Grinding spindle repair usually includes stripping and inspection, bearing replacement, shaft and taper regrinding where needed, balancing and a run test. Send the spindle with the machine model and the fault you see, such as noise, heat, vibration or poor finish.
What is a cylindrical grinding machine spindle?
It is the wheel-head spindle that carries the grinding wheel on a cylindrical grinder. It runs a large wheel at constant surface speed, usually belt driven from a separate motor, and must have very low runout because any error is copied onto the ground diameter.
