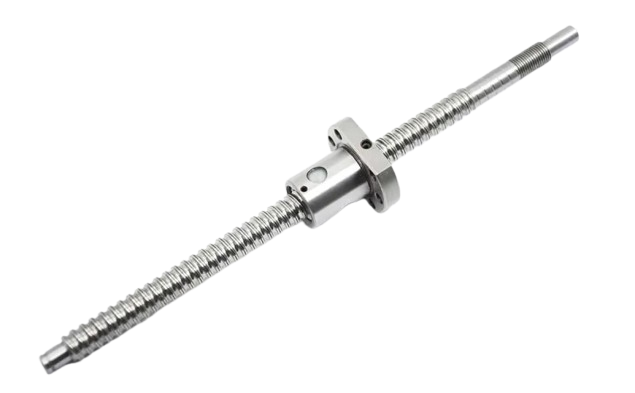

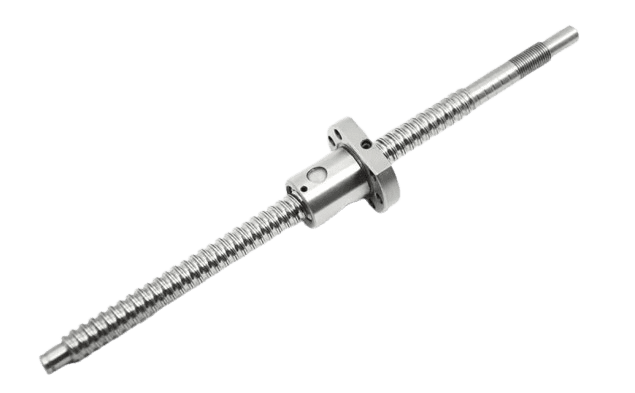

TriQuench Ball Nut SFU 2510 BG | High-Precision Linear Motion

The TRIQUENCH Ball Nut SFU - 2510 BG is a critical component for high-performance linear drive systems. Engineered to convert rotary motion into precise linear displacement, this ball nut features a 25mm diameter and a 10mm lead, providing a perfect balance between speed and positioning accuracy. The internal ball circulation system is designed for ultra-low friction and high mechanical efficiency, significantly reducing heat buildup and wear during high-speed operations. Manufactured from high-strength alloy steel with a hardened raceway, the SFU 2510 BG ensures long-term reliability and repeatable precision in demanding industrial environments like CNC routing, plasma cutting, and automated assembly lines.

High positional accuracy and repeatability
Ultra-low friction coefficient for smooth motion
High mechanical efficiency (over 90%)
Robust alloy steel construction with hardened raceways
Optimized ball circulation for reduced acoustic noise
Dust-proof wiper system to maintain internal cleanliness
Standard flange mounting for easy installation

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
MODEL NUMBER	SFU-2510-BG
NOMINAL DIAMETER	25 mm
LEAD PITCH	10 mm
BALL DIAMETER	6.35 mm
NUT TYPE	Single Flange (SFU)
ACCURACY GRADE	C7 Standard (C5 optional)
MECHANICAL	weight: 0.85 kg \| material: GCR15 Steel (Hardened) \| protectionRating: Wiper Seal Integrated

Industrial Applications

Usage Scenario	Target Industry
CNC Router X, Y, and Z Axis Drives	Precision Machine Tool Manufacturing
Industrial Laser and Plasma Cutting Machines	Aerospace and Automotive Engineering
Precision X-Y Tables and Positioning Stages	Industrial Robotics and Automation
Automated Pick-and-Place Machinery	Medical Technology and Instrumentation
Injection Molding Machine Ejector Systems	Furniture and Signage Fabrication
Medical Laboratory Automation	General Engineering
3D Printing and Additive Manufacturing Systems	General Engineering

Technical FAQ

What does the '2510' in the model name represent?

The first two digits (25) represent the nominal diameter of the ball screw in millimeters, and the last two digits (10) represent the 'lead' or 'pitch', which is the linear distance the nut travels in one full 360-degree revolution.

Does this ball nut come with a wiper seal?

Yes, the SFU 2510 BG model includes integrated industrial-grade wipers at both ends to prevent dust and debris from entering the ball tracks, ensuring a longer operational lifespan.

How should I lubricate this ball nut?

We recommend using high-quality lithium-based grease. The nut features a lubrication hole on the flange; regular maintenance intervals depend on your duty cycle, but typically every 100-200 hours of operation is standard.

Detailed Overview of TriQuench Ball Nut SFU 2510 BG | High-Precision Linear Motion

Advanced Engineering & Integration

high precision sfu 2510 ball nut for cnc routers. buy triquench 25mm 10mm lead ball nut online india. best ball nut for high speed linear motion ahmedabad. sfu2510-bg ball nut dimensions and load rating. industrial grade ball screw spares for automation gujarat

This CNC Router Accessories is preferred for .
