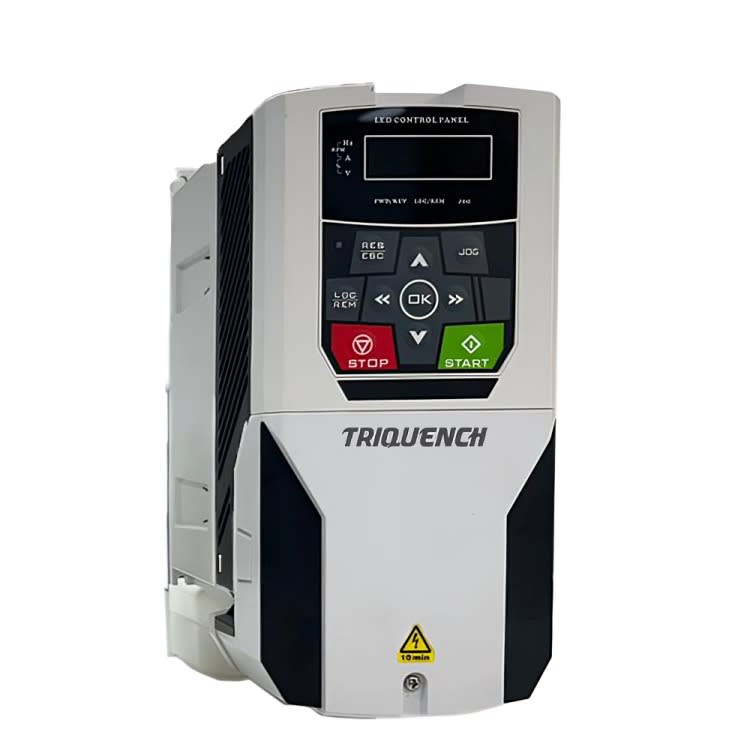

TQMES560 VFD Drive | 5.5kW 7.5HP 3-Phase High-Performance Inverter

The TQMES560-01-5K5G/7K5P-3B is a premier industrial VFD engineered to provide surgical precision over motor speed and torque regulation. Delivering a consistent 5.5kW (7.5HP) of power, this drive is a cornerstone for modern CNC routing and high-velocity industrial machinery. It features an advanced vector control algorithm that maintains stable operation even under fluctuating loads, significantly reducing energy consumption while extending the operational lifespan of the motor. Designed with high-grade components to resist electrical noise and thermal stress, the TQMES560 integrates seamlessly into dense control cabinets. Whether managing high-speed CNC spindles or large-scale conveyor systems, this drive offers the reliability and repeatable quality essential for high-output production environments.

Advanced Sensorless Vector Control for stable torque output
High energy-saving efficiency with optimized power factor
Integrated protection for over-voltage, over-current, and phase loss
Robust thermal management with high-velocity cooling fans
User-friendly digital interface for rapid parameter configuration
Multi-step speed control and PID functional support
Durable construction optimized for 24/7 industrial duty cycles

⚡ Quick Technical Datasheet:

Power OutputN/A

Max SpeedN/A

Voltage RatingN/A

Collet InterfaceER Standard

Shop Now

Comparative Technical Spindle Motor Configurations Matrix

Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.

Spindle Capacity	Operating Speed	Operating Voltage	Cooling System
12.0 kW	18,000 RPM	380 V	Water-Cooled
0.8 kW	24,000 RPM	220 V	Air-Cooled (Long Shaft)
3.7 kW	40,000 RPM	380 V	Water-Cooled ISO20
9.0 kW	18,000 RPM	380 V	Air-Cooled

Technical Specifications

Technical Parameter	Engineering Specification Value
MODEL NUMBER	TQMES560-01-5K5G/7K5P-3B
SERIES	ES560
POWER RATING KW	5.5 kW
MOTOR RATING HP	7.5 HP
INPUT VOLTAGE	3-Phase 380V ~ 440V AC
OUTPUT VOLTAGE	3-Phase 0V ~ Input Voltage
RATED OUTPUT CURRENT	13.0 A
OUTPUT FREQUENCY	0.00 ~ 600.00 Hz
MECHANICAL	weight: 2.5 kg \| coolingType: Forced Air Cooling \| protectionRating: IP20

Industrial Applications

Usage Scenario	Target Industry
High-Performance CNC Machining Centers	Machine Tool Manufacturing
Industrial Air Compressors and Fluid Systems	Textile and Apparel Production
Large-Scale Centrifugal Pumps and Fans	Material Handling and Logistics
Material Handling and Heavy Conveyor Systems	Water Treatment and HVAC
Metal Fabrication and Extrusion Machinery	Automotive and Parts Fabrication
Automated Packaging and Palletizing Lines	General Engineering
Textile Spinning and Processing Equipment	General Engineering

Technical FAQ & Operational Guide

Is the TQMES560 drive suitable for 7.5HP industrial motors?

Yes, this 5.5kW model is specifically rated for 7.5HP motors, providing ample current capacity and torque control for heavy-duty industrial loads.

Does it support external braking for high-inertia loads?

Absolutely. The TQMES560 series includes terminals for external braking resistors, which are essential for applications like conveyors or high-speed spindles that require rapid stops.

Does this VFD support high-speed spindle operations?

Yes, with an output frequency of up to 600Hz, this drive is perfectly suited for high-speed CNC spindles, including those rated at 24,000 RPM.

How is the rotational balancing calibrated on this spindle motor?

Every spindle motor is dynamically balanced in accordance with the ISO 1940 balancing standard to guarantee vibration-free running and maximum stability at high RPMs.

What are the runout tolerances of the shaft and collet interface?

The internal shaft taper maintains a runout accuracy tolerance of under 0.003mm (3 microns), maintaining precise tool concentricity and preventing premature cutter wear.

What cooling precautions are built-in to prevent heat exhaustion?

Built-in temperature dissipation channels support continuous water/liquid cooling circulation or forced fan airflow, preventing thermal expansion of components.

Is this spindle motor compatible with standard VFD inverters and collets?

Yes, the spindle supports direct electrical integration with standard variable frequency drives (VFD) and accepts industrial ER collets (ER11, ER20, ER25, or ER32) to match standard toolholder dimensions.
