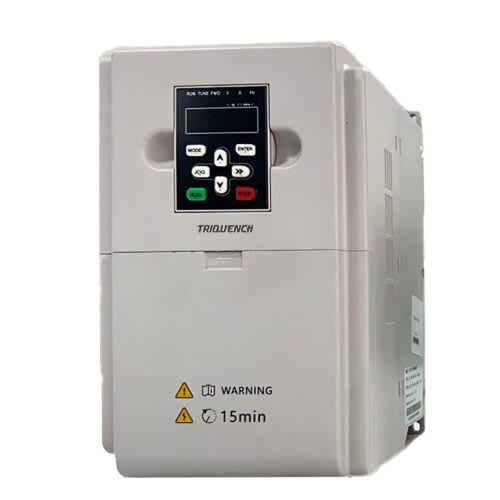

TDL200-011G3B VFD Drive - 3 Phase 11kW 380V High Performance

The TDL200-011G3B is a robust, high-performance Variable Frequency Drive (VFD) engineered to provide efficient and precise motor control for demanding industrial applications. Rated at 11kW and operating on a 3-phase 380V input, this drive is specifically designed to enhance motor performance in CNC routers and large-scale industrial machinery. The TDL200 series is renowned for its stable operation at high speeds, ensuring consistent production quality during intensive duty cycles. By optimizing energy consumption and offering a user-friendly configuration interface, this VFD helps reduce operational costs while providing the robust torque and speed control necessary for modern automated systems.

Enhanced motor performance for precision control
Stable operation at high speeds for consistent output
Efficient energy consumption to reduce operational costs
Robust 11kW power capacity for heavy-duty industrial motors
Reliable 3-Phase 380V architecture

⚡ Quick Technical Datasheet:

Power OutputN/A

Max SpeedN/A

Voltage RatingN/A

Collet InterfaceER Standard

Shop Now

Comparative Technical Spindle Motor Configurations Matrix

Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.

Spindle Capacity	Operating Speed	Operating Voltage	Cooling System
12.0 kW	18,000 RPM	380 V	Water-Cooled
0.8 kW	24,000 RPM	220 V	Air-Cooled (Long Shaft)
3.7 kW	40,000 RPM	380 V	Water-Cooled ISO20
9.0 kW	18,000 RPM	380 V	Air-Cooled

Technical Specifications

Technical Parameter	Engineering Specification Value
VOLTAGE	380V
MECHANICAL	coolingType: Fan Cooled \| mountingType: Wall / Panel Mount
SERIES	TDL200
POWER KW	11 kW
PHASE	I/P – 3 Ph 380 V

Industrial Applications

Usage Scenario	Target Industry
Industrial CNC Routers and Carving Machines	Industrial Manufacturing and Automation
High-Speed Spindle Motor Control	Woodworking and Furniture Production
Automated Conveyor and Material Handling Systems	Machine Tool Manufacturing
Industrial Fans and Pumping Stations	Textile and Chemical Engineering
General Machinery Requiring Variable Speed Control	HVAC and Industrial Cooling

Technical FAQ & Operational Guide

What is the power rating of the TDL200-011G3B?

This VFD is rated for 11kW (approximately 15 HP) and is designed for 3-phase 380V industrial power systems.

Is this drive suitable for high-speed CNC spindles?

Yes, the TDL200 series is specifically optimized for stable operation at high speeds, making it an excellent choice for CNC router spindles and other precision high-speed equipment.

Does it support energy-saving modes?

Yes, one of the core features of the TDL200-011G3B is efficient energy consumption, helping to lower total operational costs in industrial settings.

How is the rotational balancing calibrated on this spindle motor?

Every spindle motor is dynamically balanced in accordance with the ISO 1940 balancing standard to guarantee vibration-free running and maximum stability at high RPMs.

What are the runout tolerances of the shaft and collet interface?

The internal shaft taper maintains a runout accuracy tolerance of under 0.003mm (3 microns), maintaining precise tool concentricity and preventing premature cutter wear.

What cooling precautions are built-in to prevent heat exhaustion?

Built-in temperature dissipation channels support continuous water/liquid cooling circulation or forced fan airflow, preventing thermal expansion of components.

Is this spindle motor compatible with standard VFD inverters and collets?

Yes, the spindle supports direct electrical integration with standard variable frequency drives (VFD) and accepts industrial ER collets (ER11, ER20, ER25, or ER32) to match standard toolholder dimensions.

Request Quote

Share your requirements, and we’ll provide a tailored quote.

Please wait...
