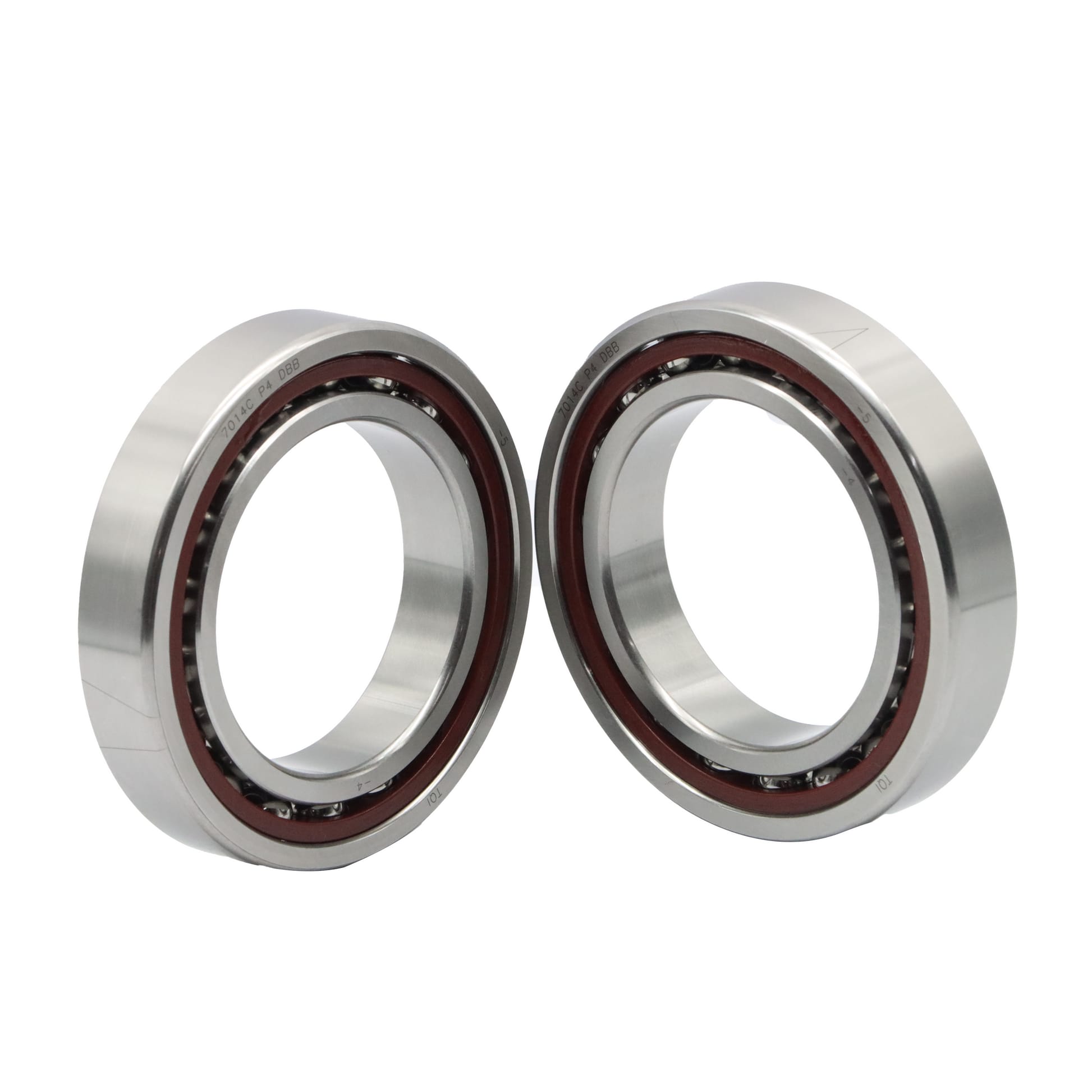

Angular Contact Steel Ball Bearing 7010C-2RZ DBB

The Angular Contact Steel Ball Bearing 7010C-2RZ DBB is designed for high-performance applications that require handling both radial and axial loads. It provides superior precision and speed, making it ideal for demanding machinery in various industries.

Dual-direction axial load support
Enhanced speed and performance for high-precision applications
Steel construction for improved durability
Ideal for use in machines that require high rotational speeds

Engineering Analysis & Technical Data

Technical Parameter	Specification Details
INSIDE DIAMETER(MM)	50 mm
OUTSIDE DIAMETER(MM)	80 mm
WIDTH DIMENSION(MM)	16 mm
LIMITING SPEED(GREASE)R/MIN	24600 r/min
BASIC LOAD RATING(CR)	15.4 KN
BASIC LOAD RATING(COR)	12 KN
WEIGHT KG	12

Industrial Applications

Used in high-speed machinery such as CNC machines and robotics
Ideal for applications requiring precision and the ability to handle both radial and axial loads
Commonly used in industrial equipment, automotive systems, and aerospace technology

Detailed Overview of Angular Contact Steel Ball Bearing 7010C-2RZ DBB

Key capabilities include Dual-direction axial load support, Enhanced speed and performance for high-precision applications, Steel construction for improved durability, Ideal for use in machines that require high rotational speeds.
