What is the maximum RPM of this spindle?

This water-cooled spindle motor has a maximum speed of 40000 RPM, ideal for micro-machining and jewelry finishing.

Does this spindle require a water chiller?

Yes, for optimal performance and bearing longevity at 40000 RPM, it is recommended to use a water cooling system or chiller to maintain thermal stability.

What size tools can I use with this motor?

The motor uses an ER11 collet system, which is compatible with tool shank diameters ranging from 0.5mm to 7mm.

CNC Spindle Motor✓ In Stock & Ready to Ship

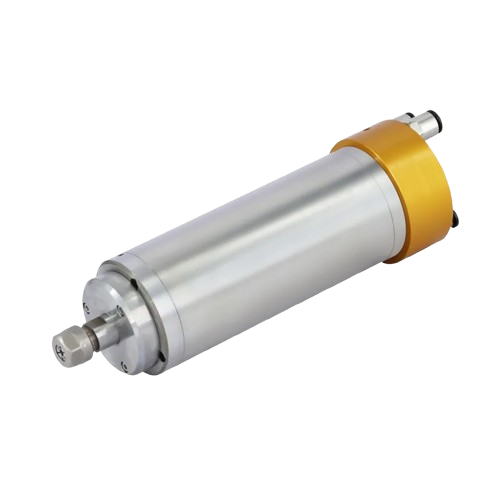

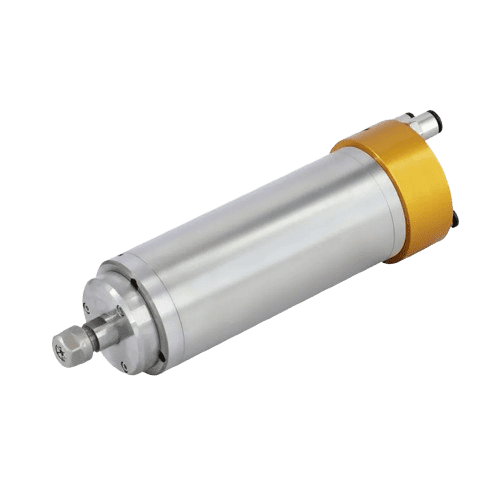

1.2 kW 40000 RPM High Speed Water Cooled CNC Spindle Motor

SKU / Model: L12600R220M1

Power Rating1.2 kw

Max Speed40000 rpm

Cooling MethodWater Cooled

Interface / SpecP4 Precision Grade

The TriQuench L12600R220M1 is a high-speed water-cooled spindle motor designed for applications requiring extreme precision and high surface finish. Delivering 1.2 kW of power at 40000 RPM, this motor is specifically engineered for the CNC bangle-making industry and high-density PCB drilling. The water-cooling system ensures thermal stability during continuous high-speed operation, while the P4 grade bearings provide minimal runout and vibration.
