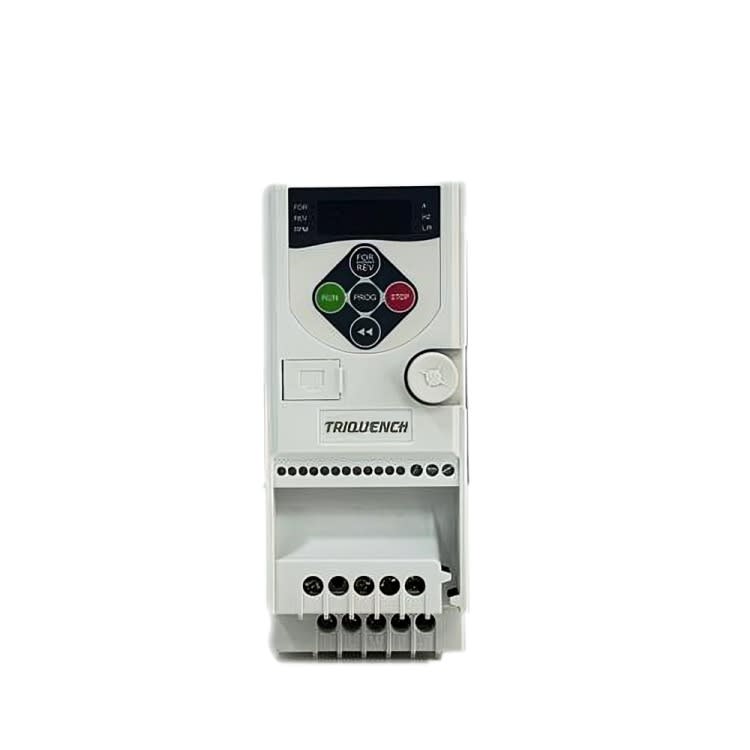

TSW200-5R5G3B VFD Drive | 5.5 kW High-Efficiency Inverter

The TSW200-5R5G3B VFD Drive is a premier motor control solution engineered for the rigorous demands of industrial CNC routing and automated production lines. Delivering a robust 5.5 kW output on a standard 380V three-phase architecture, this drive is optimized for high-efficiency motor regulation. Its advanced software algorithms ensure smooth and precise speed transitions, which is critical for maintaining high surface quality in CNC machining. Designed with improved energy-saving technology, the TSW200 significantly reduces operational costs by optimizing power consumption based on real-time load requirements. Built for reliability in tough industrial environments, it features integrated protection against electrical surges, over-current, and thermal overload, ensuring long-term operational stability for your machine's spindle or primary motor systems.

High-efficiency motor control for peak machine performance
Improved energy-saving technology for reduced operational costs
Smooth and precise speed control for surgical accuracy
Advanced 3-Phase 380V Input for industrial-grade stability
Robust 5.5 kW (5500W) power capacity for demanding tasks
Dynamic braking capability for rapid deceleration
User-friendly interface for streamlined parameter configuration

⚡ Quick Technical Datasheet:

Power OutputN/A

Max SpeedN/A

Voltage RatingN/A

Collet InterfaceER Standard

Shop Now

Comparative Technical Spindle Motor Configurations Matrix

Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.

Spindle Capacity	Operating Speed	Operating Voltage	Cooling System
12.0 kW	18,000 RPM	380 V	Water-Cooled
0.8 kW	24,000 RPM	220 V	Air-Cooled (Long Shaft)
3.7 kW	40,000 RPM	380 V	Water-Cooled ISO20
9.0 kW	18,000 RPM	380 V	Air-Cooled

Technical Specifications

Technical Parameter	Engineering Specification Value
MODEL NUMBER	TSW200-5R5G3B
POWER RATING	5.5 kW
VOLTAGE	380V AC
PHASE	3-Phase (I/P – 3 Ph 380 V)
OUTPUT FREQUENCY	0-600 Hz (High-speed optimized)
MECHANICAL	coolingType: Forced Air Cooling \| protectionGrade: IP20 Industrial Grade \| controlMode: Advanced Vector Control / V/F Control

Industrial Applications

Usage Scenario	Target Industry
Industrial CNC Router Spindle Regulation	Machine Tool Manufacturing and CNC Fabrication
Automated Conveyor and Feed Systems	Industrial Automation and Robotics
Industrial Pumping and Ventilation Control	Woodworking and Cabinetry Industries
Textile and Plastic Manufacturing Machinery	Packaging and Logistics Solutions
Metal Engraving and Milling Machine Drives	Textile and Apparel Manufacturing
High-Precision Factory Automation Systems	General Engineering

Technical FAQ & Operational Guide

Can this VFD be used for high-speed CNC spindles?

Yes, the TSW200 series is specifically optimized for CNC applications. It can handle high output frequencies (up to 600 Hz), which is essential for driving standard 18,000 to 24,000 RPM spindles common in the industry.

What protection features does the TSW200-5R5G3B have?

This drive includes comprehensive protection for both the inverter and the motor, including over-voltage, under-voltage, over-current, short-circuit, and thermal overload protection, ensuring high industrial safety and uptime.

Is a separate braking resistor required?

The '3B' in the model name typically indicates a built-in braking unit. However, for applications requiring very rapid and frequent deceleration of high-inertia loads, an external braking resistor may be recommended. Consult our technical team for specific load sizing.

How is the rotational balancing calibrated on this spindle motor?

Every spindle motor is dynamically balanced in accordance with the ISO 1940 balancing standard to guarantee vibration-free running and maximum stability at high RPMs.

What are the runout tolerances of the shaft and collet interface?

The internal shaft taper maintains a runout accuracy tolerance of under 0.003mm (3 microns), maintaining precise tool concentricity and preventing premature cutter wear.

What cooling precautions are built-in to prevent heat exhaustion?

Built-in temperature dissipation channels support continuous water/liquid cooling circulation or forced fan airflow, preventing thermal expansion of components.

Is this spindle motor compatible with standard VFD inverters and collets?

Yes, the spindle supports direct electrical integration with standard variable frequency drives (VFD) and accepts industrial ER collets (ER11, ER20, ER25, or ER32) to match standard toolholder dimensions.

Request Quote

Share your requirements, and we’ll provide a tailored quote.

Please wait...
