Industrial Precision Jaw Coupling | Flexible Elastomeric Shaft Connector

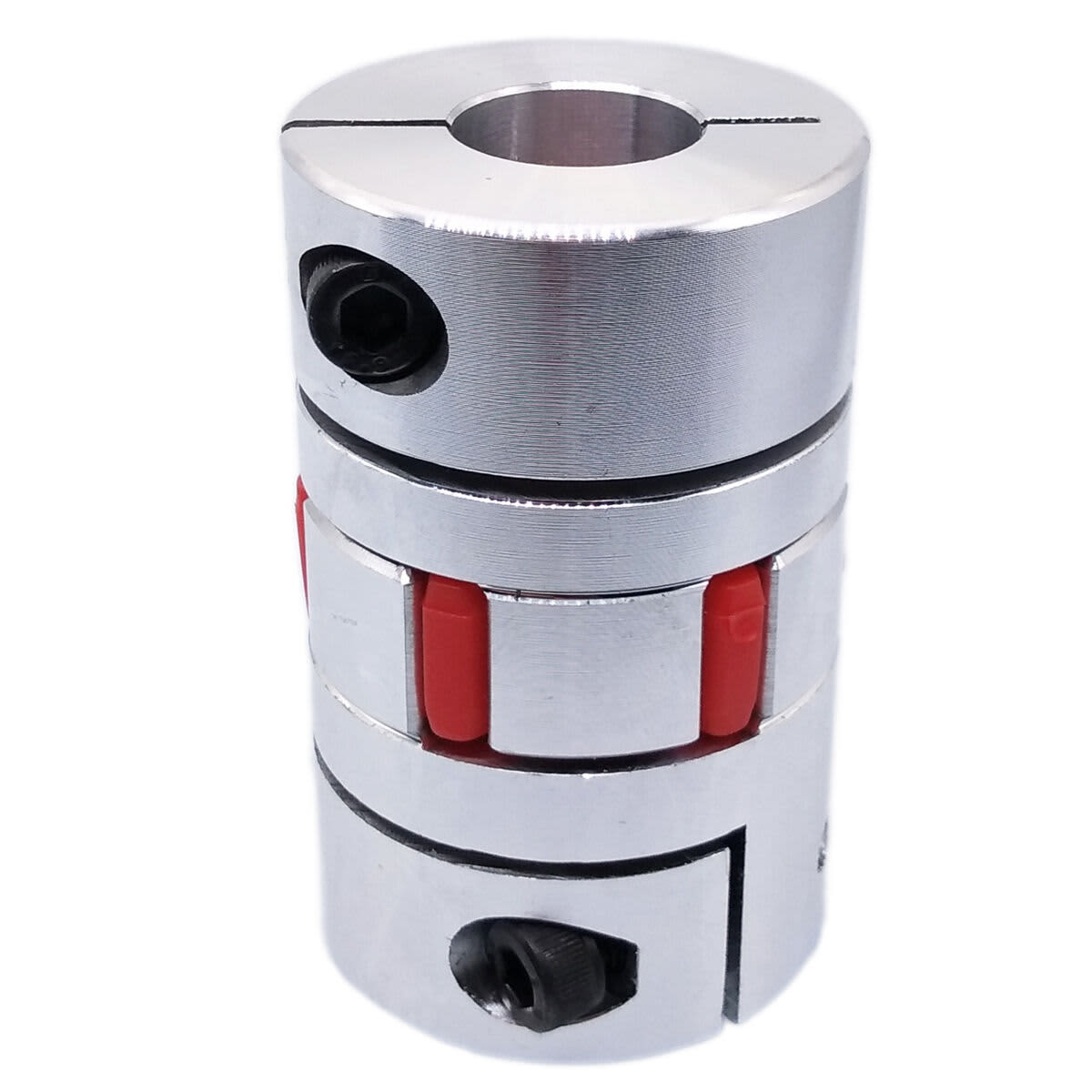

The Industrial Jaw Coupling series is a versatile shaft connection solution engineered for the high-precision demands of CNC routing and industrial automation. Utilizing a sophisticated three-piece design—consisting of two metal hubs and a central elastomeric 'spider' insert—this coupling provides a fail-safe connection for transmitting rotational torque between motor and drive shafts. The curved jaw profile ensures a zero-backlash interface, making it ideal for the rapid direction changes and precise positioning required in 3-axis and 4-axis CNC systems. Beyond simple transmission, the specialized elastomer insert acts as a shock absorber, dampening operational vibrations and protecting sensitive motor bearings from the mechanical stresses of parallel, angular, or axial misalignments. Manufactured from high-strength aluminum or steel alloys, these couplings offer the perfect blend of torsional rigidity and mechanical flexibility for long-term industrial duty.

Fail-safe three-piece design for secure torque transmission
High-performance elastomeric spider for superior vibration dampening
Zero-backlash potential optimized for precision CNC positioning
Excellent compensation for parallel, angular, and axial misalignments
High-strength aluminum or steel hubs for maximum durability
Maintenance-free operation with no lubrication required

⚡ Quick Technical Datasheet:

Power OutputN/A

Max SpeedN/A

Voltage RatingN/A

Collet InterfaceER Standard

Shop Now

Comparative Technical Spindle Motor Configurations Matrix

Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.

Spindle Capacity	Operating Speed	Operating Voltage	Cooling System
12.0 kW	18,000 RPM	380 V	Water-Cooled
0.8 kW	24,000 RPM	220 V	Air-Cooled (Long Shaft)
3.7 kW	40,000 RPM	380 V	Water-Cooled ISO20
9.0 kW	18,000 RPM	380 V	Air-Cooled

Technical Specifications

Technical Parameter	Engineering Specification Value
MODEL NUMBER	Precision Jaw Series
MATERIAL	High-Strength Aluminum / Steel Alloy
INSERT MATERIAL	Reinforced Polyurethane (Spider)
AVAILABLE SIZES	Various Outer Diameters (e.g., 20mm to 65mm)
MECHANICAL	couplingType: Curved Jaw / Spider Coupling \| precisionGrade: Industrial Professional Grade \| boreSizes: Customizable Bore Diameters (Pilot or Finished Bore)

Industrial Applications

Usage Scenario	Target Industry
CNC Router X, Y, and Z Axis Motor Connections	Machine Tool Manufacturing and CNC Fabrication
Industrial Servo and Stepper Motor Drive Systems	Industrial Automation and Robotics
High-Speed Spindle and Ball Screw Transmission	Textile and Apparel Machinery Manufacturing
Industrial Robotics and Pick-and-Place Machinery	Aerospace and Automotive Component Engineering
Automated Conveyor and Packaging Equipment	Packaging and Logistics Solutions
Laboratory Instrumentation and Precise Motion Control	General Engineering

Technical FAQ & Operational Guide

Why do jaw couplings have a spider insert?

The spider insert (elastomer) is the heart of the coupling. It prevents metal-on-metal contact, dampens vibrations from the motor, and provides the flexibility needed to handle shaft misalignment without breaking or losing torque transmission.

Can I use a Jaw Coupling for high-RPM applications?

Yes, especially the curved jaw versions. Because they are balanced and have a zero-backlash fit, they are highly effective for high-speed CNC axes and spindle drives where stability at high RPM is essential.

When should I replace the spider insert?

Spider inserts should be inspected during routine machine maintenance. If you notice cracks, permanent deformation, or 'play' (backlash) in the coupling, the spider should be replaced to maintain the precision of your machine.

How is the rotational balancing calibrated on this spindle motor?

Every spindle motor is dynamically balanced in accordance with the ISO 1940 balancing standard to guarantee vibration-free running and maximum stability at high RPMs.

What are the runout tolerances of the shaft and collet interface?

The internal shaft taper maintains a runout accuracy tolerance of under 0.003mm (3 microns), maintaining precise tool concentricity and preventing premature cutter wear.

What cooling precautions are built-in to prevent heat exhaustion?

Built-in temperature dissipation channels support continuous water/liquid cooling circulation or forced fan airflow, preventing thermal expansion of components.

Is this spindle motor compatible with standard VFD inverters and collets?

Yes, the spindle supports direct electrical integration with standard variable frequency drives (VFD) and accepts industrial ER collets (ER11, ER20, ER25, or ER32) to match standard toolholder dimensions.

Request Quote

Share your requirements, and we’ll provide a tailored quote.

Please wait...
