Why choose vacuum brazed tools over sintered stone tools?

Vacuum brazed tools have a single layer of diamond grit bonded directly to the surface with high strength. This allows for nearly 50% more diamond exposure compared to sintered tools, providing faster cutting speeds and better performance on very hard stones like granite.

Can this tool be used for dry carving?

While vacuum brazed tools have higher heat tolerance, we strongly recommend wet grinding (using water cooling). Water flushes out the stone slurry and prevents the diamonds from overheating, which significantly extends the tool's lifespan.

Is this bit compatible with my standard CNC router spindle?

Yes, provided your spindle accepts the tool's shank diameter (typically 6mm or 6.35mm for this series). Always ensure your spindle is balanced and the collet is clean for the best carving results.

CNC Router Accessories✓ In Stock & Ready to Ship

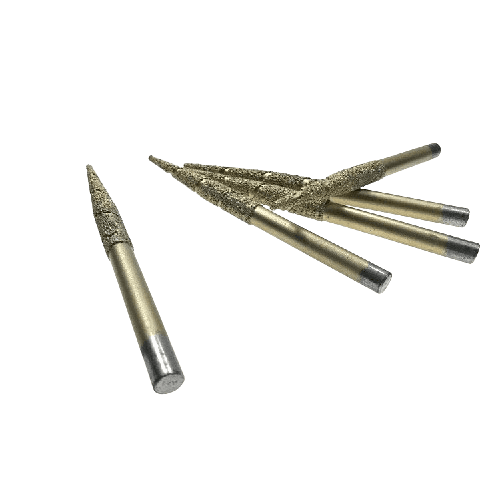

DSZ6.3-20(90) Vacuum Brazed Diamond Conical Head | Granite Carving Bit

SKU / Model: TQ-ST-DSZ6.3-90

Power RatingIndustrial Grade

Max SpeedUp to 60,000 RPM

Cooling MethodStandard Cooled

Interface / SpecP4 Precision Grade

The DSZ6.3-20(90) is an industrial-grade stone carving tool utilizing advanced vacuum brazing technology to fuse premium diamond particles directly to the steel shank. Unlike traditional sintered tools, the vacuum brazing process provides maximum diamond exposure, resulting in significantly faster material removal rates and superior thermal management during heavy-duty granite grinding. The 90-degree conical geometry is specifically optimized for V-carving, 3D profiling, and chamfering on hard stone surfaces.

Shop Online

Detailed Technical Specifications

Technical Parameter	Engineering Specification Value
CATEGORY & BRAND	CNC Router Accessories \| TriQuench India

Explore Compatible Equipment

Advanced Engineering Analysis: DSZ6.3-20(90) Vacuum Brazed Diamond Conical Head | Granite Carving Bit

DSZ6.3-20(90) Vacuum Brazed Diamond Conical Head | Granite Carving Bit

Detailed Technical Specifications
