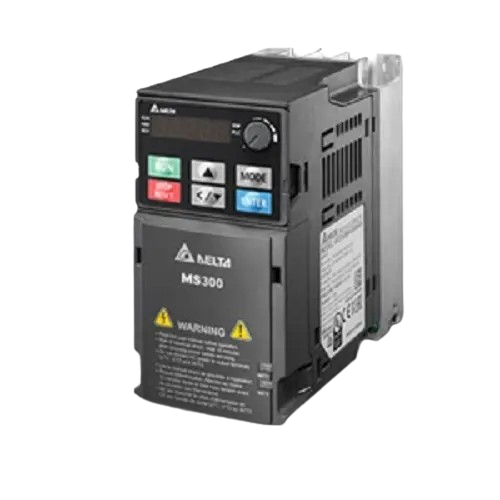

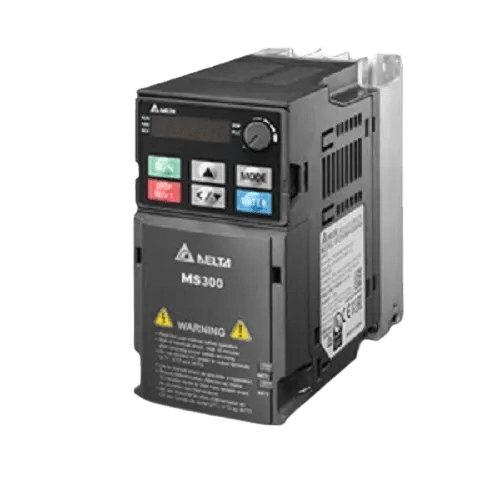

Delta VFD MS300 0.75kW 1HP 3-Phase AC Drive - 2A7MS43ANSAA

The Delta VFD MS300 (2A7MS43ANSAA) is a high-performance, standard compact vector control drive that inherits Delta’s superior drive technology. Designed for 3-phase 415V industrial applications, this 0.75kW (1HP) drive is optimized for both IM and PM motor control, offering incredible flexibility. Its compact design saves installation space, while the built-in PLC functions and STO safety torque off make it a robust choice for CNC routers, conveyor systems, and pump control. With support for both open-loop and closed-loop control, it ensures smooth motor performance, energy savings, and precise speed regulation even in demanding environments.

High-efficiency 3-phase motor control
Built-in PLC for simple programmed logic
Integrated USB port for high-speed parameter tuning
Supports various communication protocols (MODBUS, CANopen)
Safe Torque Off (STO) safety standard compliant
Compact housing suitable for dense control panels

⚡ Quick Technical Datasheet:

Power OutputN/A

Max SpeedN/A

Voltage RatingN/A

Collet InterfaceER Standard

Shop Now

Comparative Technical Spindle Motor Configurations Matrix

Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.

Spindle Capacity	Operating Speed	Operating Voltage	Cooling System
12.0 kW	18,000 RPM	380 V	Water-Cooled
0.8 kW	24,000 RPM	220 V	Air-Cooled (Long Shaft)
3.7 kW	40,000 RPM	380 V	Water-Cooled ISO20
9.0 kW	18,000 RPM	380 V	Air-Cooled

Technical Specifications

Technical Parameter	Engineering Specification Value
MECHANICAL	weight: approx 1.1 kg \| coolingType: Natural Cooling / Fan Cooled \| protectionGrade: IP20
RATED CURRENT	2.7 A
SERIES NAME	Delta MS300
POWER RATING KW	0.75 kW
POWER RATING HP	1 HP
INPUT VOLTAGE	3 Phase - 415 V (380V-480V range)
OUTPUT VOLTAGE	3 Phase - 415 V
MAX FREQUENCY	599 Hz (Standard model)

Industrial Applications

Usage Scenario	Target Industry
CNC Router Spindle Speed Control	Machine Tool Manufacturing
Industrial Conveyor Systems	HVAC and Water Treatment
Water Pumps and Fan Speed Regulation	Industrial Automation
Packaging Machinery	Textile Production
Textile and Woodworking Machines	Food and Beverage Processing
Small Machine Tools	General Engineering

Technical FAQ & Operational Guide

Can this Delta VFD run a 1HP motor on single-phase power?

No, the 2A7MS43ANSAA model is specifically designed for a 3-phase 415V input. For single-phase input requirements, the MS300 series has dedicated 'single-phase to three-phase' models.

Does this VFD support Permanent Magnet (PM) motors?

Yes, the MS300 series is versatile and supports both standard Induction Motors (IM) and high-efficiency Permanent Magnet (PM) motors.

Is there a built-in safety function in the MS300?

Yes, it includes a built-in STO (Safe Torque Off) function, which is a critical safety feature for preventing the motor from starting unexpectedly during maintenance.

How is the rotational balancing calibrated on this spindle motor?

Every spindle motor is dynamically balanced in accordance with the ISO 1940 balancing standard to guarantee vibration-free running and maximum stability at high RPMs.

What are the runout tolerances of the shaft and collet interface?

The internal shaft taper maintains a runout accuracy tolerance of under 0.003mm (3 microns), maintaining precise tool concentricity and preventing premature cutter wear.

What cooling precautions are built-in to prevent heat exhaustion?

Built-in temperature dissipation channels support continuous water/liquid cooling circulation or forced fan airflow, preventing thermal expansion of components.

Is this spindle motor compatible with standard VFD inverters and collets?

Yes, the spindle supports direct electrical integration with standard variable frequency drives (VFD) and accepts industrial ER collets (ER11, ER20, ER25, or ER32) to match standard toolholder dimensions.

Request Quote

Share your requirements, and we’ll provide a tailored quote.
