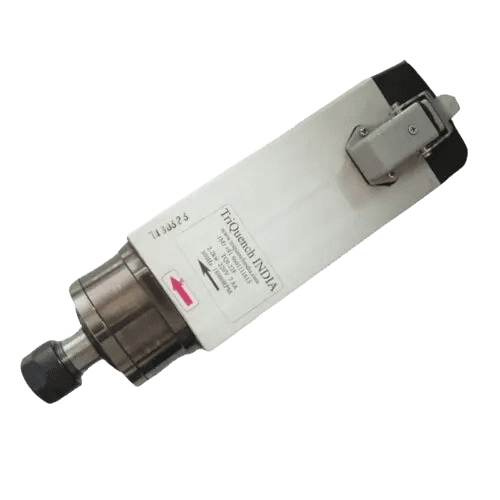

CNC Spindle Motor 2.2 kW, 18000 RPM, 220V/380V Air Cooled Square

The 2.2 kW Square Air-Cooled Spindle Motor is a high-performance solution engineered for precision and reliability across multiple industries. Operating at 18,000 RPM with a frequency of 300 Hz, this motor is uniquely designed with dual-voltage compatibility (220V/380V), allowing for flexible integration into various power environments. Its square body design ensures a rigid and stable mount, which is critical for maintaining accuracy in high-speed applications such as PCB routing, brush manufacturing, and intricate bangle designing. Equipped with a precision P4 bearing set (7005 & 7002), the motor provides smooth rotational delivery and minimal runout, making it equally effective for automotive deburring and general CNC wood routing.

Efficient 2.2 kW High-Performance Motor
18000 RPM Precision Speed
Dual Voltage Compatibility (220V/380V)
ER20 Collet interface for diverse tool clamping
Stable 2-pole electrical construction
Square housing for rigid and accurate mounting

⚡ Quick Technical Datasheet:

Power OutputN/A

Max SpeedN/A

Voltage RatingN/A

Collet InterfaceER Standard

Shop Now

Comparative Technical Spindle Motor Configurations Matrix

Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.

Spindle Capacity	Operating Speed	Operating Voltage	Cooling System
12.0 kW	18,000 RPM	380 V	Water-Cooled
0.8 kW	24,000 RPM	220 V	Air-Cooled (Long Shaft)
3.7 kW	40,000 RPM	380 V	Water-Cooled ISO20
9.0 kW	18,000 RPM	380 V	Air-Cooled

Technical Specifications

Technical Parameter	Engineering Specification Value
POWER RATING	2.2 kW
MAX SPEED	18000 RPM
OPERATING VOLTAGE	220 V / 380 V AC
RATED CURRENT	7.9 A (at 220V) / 4.6 A (at 380V)
FREQUENCY	300 Hz
RATED TORQUE	1.25 Nm
POLE COUNT	2 Pole
COLLET INTERFACE	ER20 (1mm - 13mm)
BEARING CONFIGURATION	2 x 7005 P4 (Front), 2 x 7002 P4 (Rear)
MECHANICAL	weight: 7.2 kg \| coolingType: Air Cooled \| bodyShape: Square

Industrial Applications

Usage Scenario	Target Industry
Precision CNC Router Manufacturing	Jewellery and Ornament Manufacturing
Industrial Brush Manufacturing	Electronics and PCB Fabrication
High-Speed PCB Routing and Drilling	Automotive Engineering
Jewellery Bangle Making Industry	Furniture and Woodworking
Automotive Component Deburring	General Industrial Automation
Wood Carving and Relief Engraving	General Engineering

Technical FAQ & Operational Guide

How does the dual-voltage feature work on this motor?

The motor can be configured to run on either 220V or 380V depending on your VFD settings and wiring configuration.

What size tools can I use with the ER20 collet?

The ER20 collet system allows you to clamp tool shanks ranging from 1mm up to 13mm in diameter.

How is the rotational balancing calibrated on this spindle motor?

Every spindle motor is dynamically balanced in accordance with the ISO 1940 balancing standard to guarantee vibration-free running and maximum stability at high RPMs.

What are the runout tolerances of the shaft and collet interface?

The internal shaft taper maintains a runout accuracy tolerance of under 0.003mm (3 microns), maintaining precise tool concentricity and preventing premature cutter wear.

What cooling precautions are built-in to prevent heat exhaustion?

Built-in temperature dissipation channels support continuous water/liquid cooling circulation or forced fan airflow, preventing thermal expansion of components.

Is this spindle motor compatible with standard VFD inverters and collets?

Yes, the spindle supports direct electrical integration with standard variable frequency drives (VFD) and accepts industrial ER collets (ER11, ER20, ER25, or ER32) to match standard toolholder dimensions.
