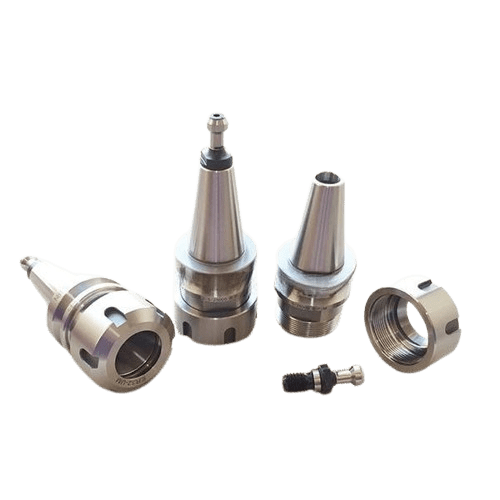

BT30 ER32 Tool Holder | 60mm High-Speed Precision Collet Chuck

The TriQuench NBT30-ER32-60L is a premier industrial tool holder designed for high-performance CNC machining centers. Forged from premium 20CrMnTi alloy steel, this holder undergoes a rigorous carburizing and quenching process to achieve a surface hardness of HRC56-58, ensuring exceptional wear resistance and long-term taper integrity. The holder is precision-balanced to G2.5 at 25,000 RPM, making it the ideal choice for high-speed spindles where vibration suppression is critical for tool life and surface finish quality. Featuring a 7:24 taper accuracy of ≤AT3, it provides maximum surface contact with the spindle, delivering the rigidity required for heavy-duty routing and precision milling. Whether used in high-speed wood carving or complex non-ferrous metal fabrication, this BT30 holder ensures secure tool retention and surgical accuracy.

High-speed balanced to G2.5 at 25,000 RPM for vibration-free milling
Forged from 20CrMnTi alloy steel for superior tensile strength
Hardened to HRC56-58 for maximum durability and taper protection
Precision-ground taper (≤AT3) for 100% spindle contact
Integrated 60mm projection length (60L) for optimized tool reach
Full compatibility with all standard ER32 collet systems
Corrosion-resistant coating for long-term industrial reliability

⚡ Quick Technical Datasheet:

Power OutputN/A

Max SpeedN/A

Voltage RatingN/A

Collet InterfaceER Standard

Shop Now

Comparative Technical Spindle Motor Configurations Matrix

Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.

Spindle Capacity	Operating Speed	Operating Voltage	Cooling System
12.0 kW	18,000 RPM	380 V	Water-Cooled
0.8 kW	24,000 RPM	220 V	Air-Cooled (Long Shaft)
3.7 kW	40,000 RPM	380 V	Water-Cooled ISO20
9.0 kW	18,000 RPM	380 V	Air-Cooled

Technical Specifications

Technical Parameter	Engineering Specification Value
MODEL NUMBER	NBT30-ER32-60L
TAPER SIZE	BT30 (7:24 Taper)
PROJECTION LENGTH	60 mm
MATERIAL GRADE	20CrMnTi Alloy Steel
HARDNESS RATING	HRC56-58
BALANCING GRADE	G2.5 / 25,000 RPM
MECHANICAL	taperRunout: ≤ 0.003 mm \| nutType: ER32-UM / High Speed Nut \| pullstudStandard: BT30 Standard \| weight: 0.72 kg (approx)

Industrial Applications

Usage Scenario	Target Industry
High-Speed CNC Routing and Milling	Precision Machine Tool Manufacturing
Automated Tool Change (ATC) Systems	Furniture and Signage Automation
Precision 3D Wood Carving and Engraving	Aerospace and Automotive Component Shops
Non-Ferrous Metal Machining (Aluminum, Brass)	Mold and Die Engineering
Mold and Die Industrial Fabrication	Industrial Robotics and Integration
High-Frequency Spindle Tooling Support	General Engineering
Industrial Component Prototyping	General Engineering

Technical FAQ & Operational Guide

What is the benefit of the G2.5 balance rating?

A G2.5 balance rating at 25,000 RPM means the holder has minimal centrifugal imbalance. This reduces spindle vibration, protects spindle bearings from premature wear, and ensures a much smoother surface finish on your workpiece.

Does this tool holder come with the pull stud and nut?

This model includes the high-speed ER32 nut. Pull studs are typically sold separately to ensure you get the exact pull stud angle required by your specific machine spindle.

How should I maintain the taper of my BT30 holder?

Always wipe the taper with a clean, lint-free cloth and a light industrial cleaner before inserting it into the spindle. Any debris on the taper can cause runout and potentially damage the spindle's internal surface.

How is the rotational balancing calibrated on this spindle motor?

Every spindle motor is dynamically balanced in accordance with the ISO 1940 balancing standard to guarantee vibration-free running and maximum stability at high RPMs.

What are the runout tolerances of the shaft and collet interface?

The internal shaft taper maintains a runout accuracy tolerance of under 0.003mm (3 microns), maintaining precise tool concentricity and preventing premature cutter wear.

What cooling precautions are built-in to prevent heat exhaustion?

Built-in temperature dissipation channels support continuous water/liquid cooling circulation or forced fan airflow, preventing thermal expansion of components.

Is this spindle motor compatible with standard VFD inverters and collets?

Yes, the spindle supports direct electrical integration with standard variable frequency drives (VFD) and accepts industrial ER collets (ER11, ER20, ER25, or ER32) to match standard toolholder dimensions.
