BT30 NBT30 ATC Toolholder Forks | High-Strength CNC Tool Grippers

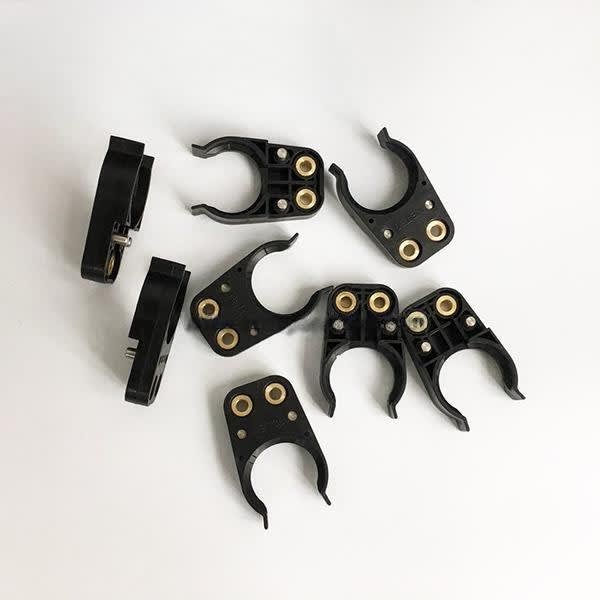

The BT30 and NBT30 ATC Toolholder Forks are critical interface components for automated CNC machining centers. Forged from high-density, wear-resistant engineering plastic (POM), these grippers are designed to withstand the high-frequency mechanical cycles of modern Automatic Tool Changers. The specific 'NBT30' profile ensures compatibility with non-keyway BT30 toolholders often found in high-speed woodworking and light-metal CNC spindles. These forks provide a secure 'snap-fit' tension that stabilizes the toolholder within the magazine carousel or linear rack, preventing tool misalignment or drops. The non-marring plastic construction is vital for protecting the precision-ground taper of your toolholders from metallic scratches, thereby maintaining the accuracy of your spindle-to-tool interface and extending the lifespan of your expensive tooling sets.

Dual compatibility with standard BT30 and NBT30 toolholder flanges
Manufactured from high-strength reinforced POM plastic for maximum fatigue resistance
Lightweight, anti-static design improves ATC cycle speed and efficiency
Non-marring surface prevents scratching or damage to toolholder tapers
Precision-molded geometry ensures consistent alignment during tool swaps
Resistant to industrial coolants, oils, and high-temperature workshop environments

⚡ Quick Technical Datasheet:

Power OutputN/A

Max SpeedN/A

Voltage RatingN/A

Collet InterfaceER Standard

Shop Now

Comparative Technical Spindle Motor Configurations Matrix

Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.

Spindle Capacity	Operating Speed	Operating Voltage	Cooling System
12.0 kW	18,000 RPM	380 V	Water-Cooled
0.8 kW	24,000 RPM	220 V	Air-Cooled (Long Shaft)
3.7 kW	40,000 RPM	380 V	Water-Cooled ISO20
9.0 kW	18,000 RPM	380 V	Air-Cooled

Technical Specifications

Technical Parameter	Engineering Specification Value
MODEL NUMBER	BT30-NBT30-ATC-GRIPPER
COMPATIBILITY	BT30 / NBT30 Toolholders
MATERIAL	High-Density Reinforced Engineering Plastic
APPLICATION TYPE	Automatic Tool Changer (ATC)
MECHANICAL	grippingForce: Industrial-Grade Tension Certified \| wearResistance: High-Cycle Durability Rated \| mounting: Compatible with Standard ATC Carousel and Linear Racks

Industrial Applications

Usage Scenario	Target Industry
High-Speed Woodworking CNC Routers with ATC Systems	Furniture and Wood Products Manufacturing
Aluminum and Non-Ferrous Metal Machining Centers	Signage and Architectural Model Fabrication
Automated Signage and Advertising Fabrication	Machine Tool Manufacturing and Spare Parts
Industrial Spindles utilizing BT30/NBT30 Tooling	Automotive and Light Engineering Fabrication
Carousel and Linear Style Tool Magazines	Industrial Automation and Robotics

Technical FAQ & Operational Guide

What is the difference between BT30 and NBT30 forks?

While both are for 30-taper tools, 'NBT30' specifically refers to toolholders without keyways (common in high-speed wood/aluminum routing). These forks are designed to securely grip either standard BT30 or NBT30 flanges, ensuring universal fit for 30-taper ATC systems.

When should I replace my ATC tool forks?

Replace forks if you notice visible cracks, stress whitening of the plastic, or if the toolholder 'shakes' or sags when seated. Worn forks are the leading cause of tool-drop accidents during automatic tool changes.

Are these forks resistant to CNC coolants?

Yes, our forks are manufactured from high-density POM plastic, which is chemically resistant to most industrial cutting oils and water-based coolants used in metal and stone machining.

How is the rotational balancing calibrated on this spindle motor?

Every spindle motor is dynamically balanced in accordance with the ISO 1940 balancing standard to guarantee vibration-free running and maximum stability at high RPMs.

What are the runout tolerances of the shaft and collet interface?

The internal shaft taper maintains a runout accuracy tolerance of under 0.003mm (3 microns), maintaining precise tool concentricity and preventing premature cutter wear.

What cooling precautions are built-in to prevent heat exhaustion?

Built-in temperature dissipation channels support continuous water/liquid cooling circulation or forced fan airflow, preventing thermal expansion of components.

Is this spindle motor compatible with standard VFD inverters and collets?

Yes, the spindle supports direct electrical integration with standard variable frequency drives (VFD) and accepts industrial ER collets (ER11, ER20, ER25, or ER32) to match standard toolholder dimensions.

Request Quote

Share your requirements, and we’ll provide a tailored quote.
