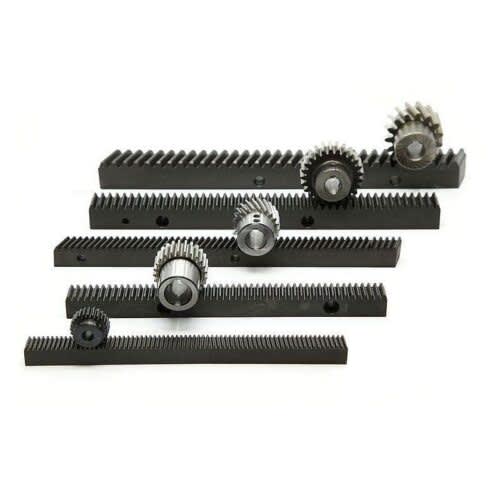

Industrial Precision Rack & Pinion System | High-Speed Linear Drive

The Industrial Precision Rack & Pinion system is the premier choice for linear motion in large-format CNC routers and automated industrial machinery. Designed to overcome the length limitations of ball screws, this system provides consistent accuracy and rigidity across extended travel distances. Manufactured from high-grade alloy steel, the racks undergo specialized induction hardening and precision grinding to ensure a smooth, low-noise interface with the pinion gear. This setup allows for rapid acceleration and high-speed traversing while maintaining the exceptional torque transmission necessary for heavy-duty milling, stone cutting, and metal engraving. Available in both straight and helical tooth profiles (Modules 1.25, 1.5, and 2.0), our rack and pinion systems are engineered to minimize backlash and maximize operational efficiency in demanding dynamic environments.

Efficient motion conversion optimized for long-travel CNC axes
Hardened and ground teeth for superior wear resistance and accuracy
High-speed positioning capability with rapid acceleration rates
Available in helical profiles for reduced noise and smoother engagement
Durable alloy steel construction designed for industrial heavy-duty use
Modular design for easy installation and seamless rail joining

⚡ Quick Technical Datasheet:

Power OutputN/A

Max SpeedN/A

Voltage RatingN/A

Collet InterfaceER Standard

Shop Now

Comparative Technical Spindle Motor Configurations Matrix

Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.

Spindle Capacity	Operating Speed	Operating Voltage	Cooling System
12.0 kW	18,000 RPM	380 V	Water-Cooled
0.8 kW	24,000 RPM	220 V	Air-Cooled (Long Shaft)
3.7 kW	40,000 RPM	380 V	Water-Cooled ISO20
9.0 kW	18,000 RPM	380 V	Air-Cooled

Technical Specifications

Technical Parameter	Engineering Specification Value
MODEL NUMBER	Precision Rack & Pinion Series
MATERIAL	Hardened High-Grade Steel Alloy (C45 / 20CrMnTi)
AVAILABLE MODULES	1.25 Mod / 1.5 Mod / 2.0 Mod
TOOTH TYPE	Helical (Right Hand/Left Hand) or Straight Spur
MECHANICAL	precisionGrade: Industrial Grade (DIN 6/7/8) \| hardness: HRC 50-55 (Induction Hardened) \| standardLength: 1000mm per section (Connectable)

Industrial Applications

Usage Scenario	Target Industry
Large-Format CNC Router X and Y Axes	Machine Tool Manufacturing and CNC Fabrication
Industrial Plasma and Laser Cutting Gantry Systems	Industrial Automation and Robotics
Heavy-Duty Marble and Stone Routing Machines	Signage and Large-Format Manufacturing
Industrial Robotics and Pick-and-Place Automation	Stone and Architectural Masonry
Automated Packaging and Woodworking Centers	Aerospace and Automotive Production
High-Speed Material Handling and Conveyor Tracks	General Engineering

Technical FAQ & Operational Guide

Why choose Helical Rack over Straight Rack?

Helical racks feature teeth cut at an angle, allowing for multiple teeth to engage simultaneously. This results in much smoother motion, higher load capacity, and significantly lower noise levels at high speeds compared to straight spur racks.

Can I connect multiple 1-meter rack sections together?

Yes. Our racks are designed with end-machining that allows them to be joined seamlessly. We recommend using a 'companion rack' section during installation to ensure the tooth pitch remains perfectly consistent across the joint.

How do I maintain the rack and pinion system?

Regular lubrication is critical to prevent metal-on-metal wear. We recommend a high-pressure gear grease or an automated felt-gear lubrication system that consistently applies oil to the rack surface during operation.

How is the rotational balancing calibrated on this spindle motor?

Every spindle motor is dynamically balanced in accordance with the ISO 1940 balancing standard to guarantee vibration-free running and maximum stability at high RPMs.

What are the runout tolerances of the shaft and collet interface?

The internal shaft taper maintains a runout accuracy tolerance of under 0.003mm (3 microns), maintaining precise tool concentricity and preventing premature cutter wear.

What cooling precautions are built-in to prevent heat exhaustion?

Built-in temperature dissipation channels support continuous water/liquid cooling circulation or forced fan airflow, preventing thermal expansion of components.

Is this spindle motor compatible with standard VFD inverters and collets?

Yes, the spindle supports direct electrical integration with standard variable frequency drives (VFD) and accepts industrial ER collets (ER11, ER20, ER25, or ER32) to match standard toolholder dimensions.
