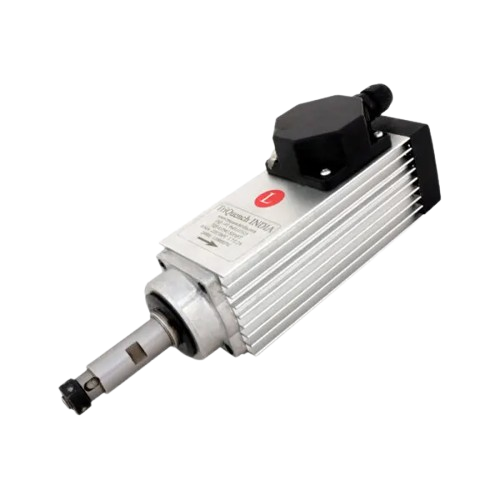

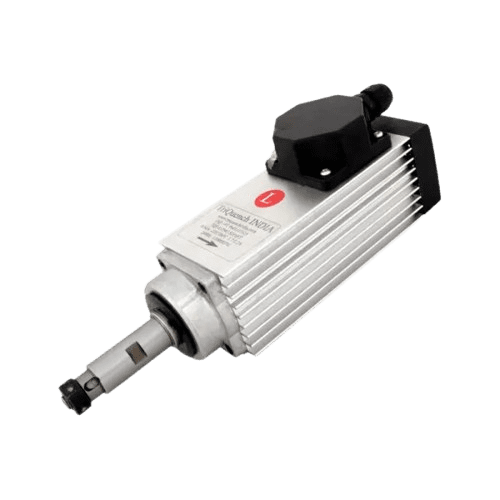

CNC EDGE Banding Spindle Motor 0.8 kW, 18000 RPM, 380V/220V

The CNC EDGE Banding Spindle Motor 0.8 kW is a specialized industrial motor designed specifically for the high-precision requirements of edge banding machines. Operating at a peak speed of 18,000 RPM with a 300 Hz frequency, it delivers the consistent performance needed for high-quality finishing in woodworking. This model is uniquely versatile, supporting both 380V and 220V power architectures to suit various industrial setups. Engineered for longevity, it features a robust P4 bearing configuration (6005 & 6000) and an ER-11 collet interface for accurate tool holding. Its compact and durable design ensures it can withstand the continuous duty cycles typical of industrial edge banding operations, making it an essential component for furniture manufacturing and commercial cabinetry production.

Versatile Dual Voltage support (220V/380V)
High-Speed 18,000 RPM for precision edge finishing
Precision P4 Grade Bearing Assembly (6005 & 6000)
Industrial 300 Hz High-Frequency stable operation
Durable architecture tailored for continuous edge banding
ER-11 Collet interface for secure tool clamping

⚡ Quick Technical Datasheet:

Power OutputN/A

Max SpeedN/A

Voltage RatingN/A

Collet InterfaceER Standard

Shop Now

Comparative Technical Spindle Motor Configurations Matrix

Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.

Spindle Capacity	Operating Speed	Operating Voltage	Cooling System
12.0 kW	18,000 RPM	380 V	Water-Cooled
0.8 kW	24,000 RPM	220 V	Air-Cooled (Long Shaft)
3.7 kW	40,000 RPM	380 V	Water-Cooled ISO20
9.0 kW	18,000 RPM	380 V	Air-Cooled

Technical Specifications

Technical Parameter	Engineering Specification Value
MODEL NUMBER	E08180S2238WF
POWER RATING	0.8 kW
MAX SPEED	18000 RPM
OPERATING VOLTAGE	380 V / 220 V (Dual)
RATED CURRENT	3.9 A (220V) / 2 A (380V)
FREQUENCY	300 Hz
RATED TORQUE	0.31 N.m
POLE COUNT	2 Pole
COLLET INTERFACE	ER-11
BEARING CONFIGURATION	6005 P4 (Front), 6000 P4 (Rear)
MECHANICAL	coolingType: Continuous Industrial Grade \| bodyType: EDGE Banding Specific Series

Industrial Applications

Usage Scenario	Target Industry
Industrial CNC EDGE Banding Machines	Furniture Manufacturing Industry
Automated Woodworking Finishing Lines	Interior Design and Joinery
Commercial Furniture Production	Woodworking Machine Tool Production
Modular Kitchen Cabinet Fabrication	Cabinetry and Millwork Engineering
Precision Plywood and Board Edge Trimming	Industrial Board Processing

Technical FAQ & Operational Guide

Can this motor run on both 220V and 380V?

Yes, this model features dual voltage support. It can be wired for either a 220V or 380V input, allowing it to adapt to different factory power standards without needing a different motor.

Is this motor suitable for continuous use in a production line?

Absolutely. It is specifically designed for the edge banding industry, which requires long hours of continuous operation. The P4 grade bearings are chosen for their durability and thermal stability.

What is the benefit of the 300 Hz frequency for this application?

The 300 Hz frequency allows the motor to reach high speeds (18,000 RPM) efficiently while maintaining the torque necessary for clean edge trimming on various types of boards and laminates.

How is the rotational balancing calibrated on this spindle motor?

Every spindle motor is dynamically balanced in accordance with the ISO 1940 balancing standard to guarantee vibration-free running and maximum stability at high RPMs.

What are the runout tolerances of the shaft and collet interface?

The internal shaft taper maintains a runout accuracy tolerance of under 0.003mm (3 microns), maintaining precise tool concentricity and preventing premature cutter wear.

What cooling precautions are built-in to prevent heat exhaustion?

Built-in temperature dissipation channels support continuous water/liquid cooling circulation or forced fan airflow, preventing thermal expansion of components.

Is this spindle motor compatible with standard VFD inverters and collets?

Yes, the spindle supports direct electrical integration with standard variable frequency drives (VFD) and accepts industrial ER collets (ER11, ER20, ER25, or ER32) to match standard toolholder dimensions.
