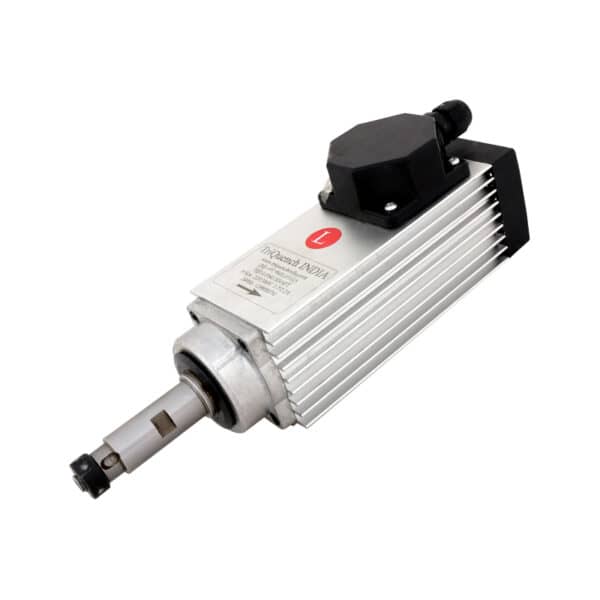

CNC Edge Banding Spindle Motor 0.8 kW, 18000 RPM, 220V/380V

The 0.8 kW CNC Edge Banding Spindle Motor is a precision-engineered solution tailored specifically for the automated woodworking and furniture manufacturing industry. Operating at a stable 18,000 RPM with a 300 Hz frequency, this spindle is optimized for the clean trimming and shaping of PVC, ABS, and wood veneer edges. Its unique long-shaft design provides the necessary reach for complex edge-banding machinery layouts. The motor offers dual-voltage flexibility, supporting both 220V and 380V industrial power supplies. To ensure vibration-free performance and superior edge finish quality, it is equipped with a high-precision P4 bearing arrangement (6005 & 6000). With a focused torque of 0.31 Nm and a standard ER11 collet interface, it delivers the consistent accuracy required for high-volume, professional-grade panel processing.

Specialized Long-Shaft Architecture for Edge Banding
Dual Voltage Versatility (220V / 380V)
High-Precision P4 Grade Bearing Configuration
Efficient 18000 RPM for clean edge trimming
Compact ER11 Collet Interface
Engineered for 24/7 furniture production cycles

⚡ Quick Technical Datasheet:

Power OutputN/A

Max SpeedN/A

Voltage RatingN/A

Collet InterfaceER Standard

Shop Now

Comparative Technical Spindle Motor Configurations Matrix

Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.

Spindle Capacity	Operating Speed	Operating Voltage	Cooling System
12.0 kW	18,000 RPM	380 V	Water-Cooled
0.8 kW	24,000 RPM	220 V	Air-Cooled (Long Shaft)
3.7 kW	40,000 RPM	380 V	Water-Cooled ISO20
9.0 kW	18,000 RPM	380 V	Air-Cooled

Technical Specifications

Technical Parameter	Engineering Specification Value
MODEL NUMBER	E08180S2238WF
POWER RATING	0.8 kW
MAX SPEED	18000 RPM
OPERATING VOLTAGE	220 V / 380 V AC
RATED CURRENT	3.9 A (at 220V) / 2 A (at 380V)
FREQUENCY	300 Hz
RATED TORQUE	0.31 N.m
POLE COUNT	2 Pole
COLLET INTERFACE	ER11
BEARING CONFIGURATION	6005 P4 (Front), 6000 P4 (Rear)
MECHANICAL	weight: approx 3.2 kg \| coolingType: Natural/Air Cooling \| bodyType: Long Shaft Special Purpose

Industrial Applications

Usage Scenario	Target Industry
Automatic Edge Banding Machines	Modular Furniture Manufacturing
PVC and ABS Edge Trimming Units	Commercial Cabinetry and Joinery
Fine Woodworking Shaping Operations	Woodworking Machinery OEM
Panel Processing and Cabinetry Production	Interior Panel Processing Industries
Corner Rounding and Buffing Units	General Engineering
Furniture Assembly Line Automation	General Engineering

Technical FAQ & Operational Guide

Can this spindle be used for standard CNC routing?

While it can rotate a bit, this model is specifically engineered with a long-shaft design for edge banding machines. For standard routing, we recommend our standard air or water-cooled cylindrical spindle series.

Does it support both single and three-phase power?

The motor is designed for industrial voltages (220V/380V). It must be operated through a Variable Frequency Drive (VFD) to achieve its 18,000 RPM speed and protect the precision bearings.

What is the benefit of the long-shaft design?

The extended shaft allows the trimming tools to reach the panel edges comfortably within the mechanical layout of an automatic edge-banding machine, providing clear space for the trimming head and suction hoods.

How is the rotational balancing calibrated on this spindle motor?

Every spindle motor is dynamically balanced in accordance with the ISO 1940 balancing standard to guarantee vibration-free running and maximum stability at high RPMs.

What are the runout tolerances of the shaft and collet interface?

The internal shaft taper maintains a runout accuracy tolerance of under 0.003mm (3 microns), maintaining precise tool concentricity and preventing premature cutter wear.

What cooling precautions are built-in to prevent heat exhaustion?

Built-in temperature dissipation channels support continuous water/liquid cooling circulation or forced fan airflow, preventing thermal expansion of components.

Is this spindle motor compatible with standard VFD inverters and collets?

Yes, the spindle supports direct electrical integration with standard variable frequency drives (VFD) and accepts industrial ER collets (ER11, ER20, ER25, or ER32) to match standard toolholder dimensions.
