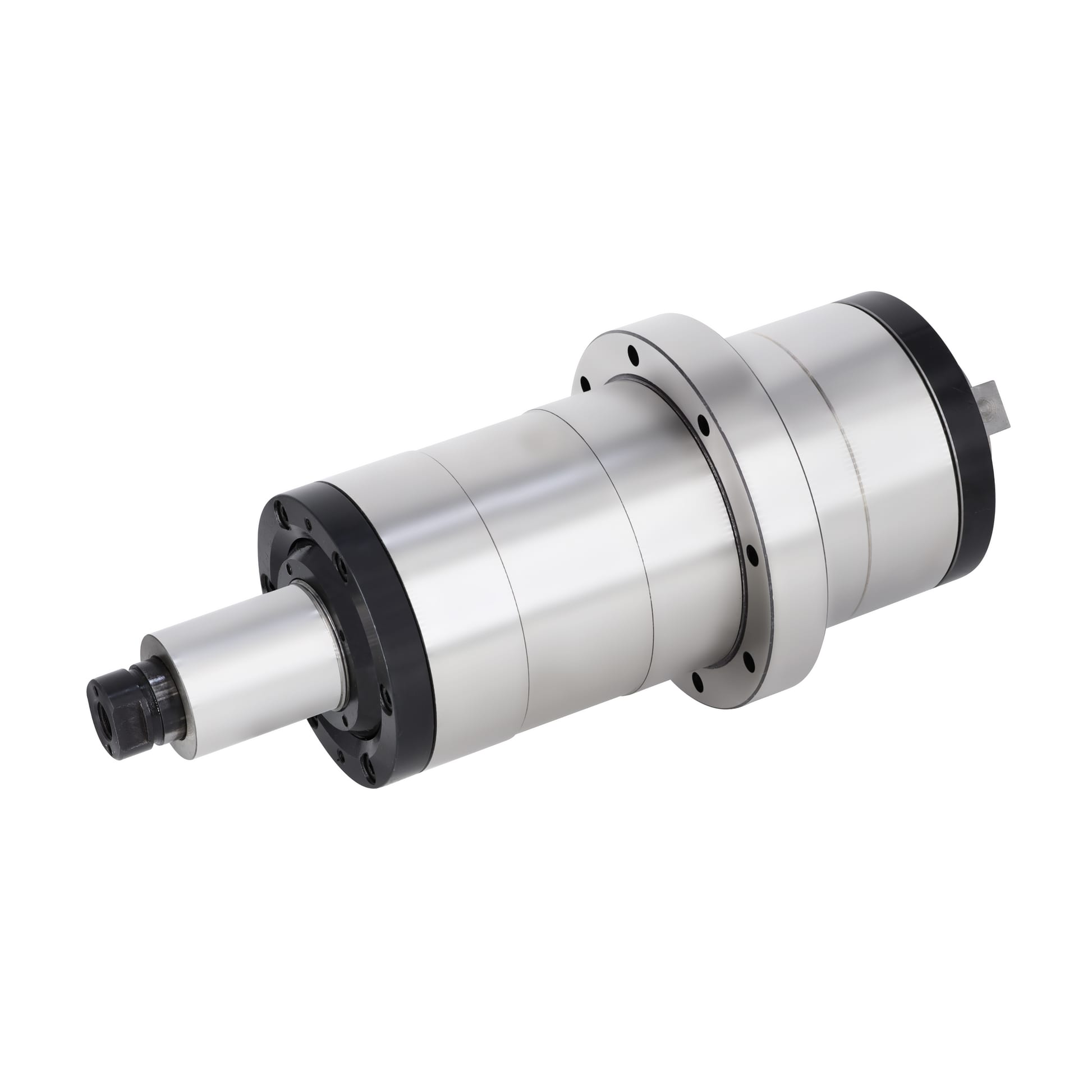

BT40 150mm Belt Driven Milling Spindle - 8000 RPM Precision

The BT40 150mm Milling Spindle is a superior mechanical solution designed specifically for Vertical Machining Centers (VMC) and heavy-duty milling environments. Featuring a 150H6 locating diameter and a massive 500mm total length, this belt-driven spindle is engineered for maximum structural rigidity and vibration dampening. It utilizes a precision-matched 4+2 bearing configuration, incorporating 7014 P4 front bearings and 7012 P4 rear bearings to ensure exceptional rotational accuracy and high load-bearing capacity during aggressive material removal. Optimized for speeds up to 8,000 RPM, the spindle is greased-packed for low-maintenance industrial operation. The robust 202mm flange diameter provides an ultra-stable mounting interface, making it the ideal choice for modern CNC machines requiring reliable, long-term precision in metalworking.

Industrial-Grade BT40 Nose Taper for superior tool clamping
Robust 150H6 Locating Diameter for enhanced stability
High-Speed 8000 RPM Capability for versatile milling
Precision 4+2 Bearing Arrangement (7014 P4 & 7012 P4)
Greased-Packed Lubrication for low-maintenance longevity
Large 202mm Flange Interface for vibration suppression

⚡ Quick Technical Datasheet:

Power OutputN/A

Max SpeedN/A

Voltage RatingN/A

Collet InterfaceER Standard

Shop Now

Comparative Technical Spindle Motor Configurations Matrix

Use the structural data catalog matrix below to evaluate power outputs, maximum RPM, operating voltages, and cooling styles across standard TriQuench CNC spindle models.

Spindle Capacity	Operating Speed	Operating Voltage	Cooling System
12.0 kW	18,000 RPM	380 V	Water-Cooled
0.8 kW	24,000 RPM	220 V	Air-Cooled (Long Shaft)
3.7 kW	40,000 RPM	380 V	Water-Cooled ISO20
9.0 kW	18,000 RPM	380 V	Air-Cooled

Technical Specifications

Technical Parameter	Engineering Specification Value
NOSE TAPER	BT-40 (7:24 Taper)
LOCATING DIAMETER	150H6
TOTAL LENGTH	500 mm
FLANGE DIAMETER	202 mm
MAX SPEED	8000 RPM
LUBRICATION TYPE	Greased Packed
BEARING CONFIGURATION	4 + 2 Arrangement
MECHANICAL	driveType: Belt Driven \| mounting: Vertical Milling Ready
MODEL NUMBER	MTMSBT40150
FRONT BEARING	7014 P4 Precision Grade
REAR BEARING	7012 P4 Precision Grade

Industrial Applications

Usage Scenario	Target Industry
Vertical Machining Centers (VMC)	Automotive and Powertrain Engineering
Heavy-Duty Metal Milling and Profiling	Aerospace Component Manufacturing
High-Precision CNC Boring Operations	Heavy Engineering and Tooling
Automotive and Die-Mold Machining	Machine Tool Manufacturing
Large-Scale Industrial Metalworking	Mold and Die Industry
Custom Machine Tool Building	General Engineering

Technical FAQ & Operational Guide

What is the advantage of the 4+2 bearing arrangement?

The 4+2 arrangement (four front bearings and two rear bearings) provides significantly higher radial and axial stiffness. This allows the spindle to handle heavier cutting loads and maintain extreme precision during aggressive milling operations compared to standard configurations.

Does this spindle require an external oil mist system?

No, this model is designed with high-quality greased-packed lubrication, making it a low-maintenance 'fit and forget' solution for most standard industrial milling environments up to 8000 RPM.

Is the 150H6 locating diameter standard for VMCs?

Yes, the 150mm (H6 tolerance) locating diameter is a widely used industrial standard for mid-to-large sized Vertical Machining Centers, ensuring compatibility with various machine headstocks.

How is the rotational balancing calibrated on this spindle motor?

Every spindle motor is dynamically balanced in accordance with the ISO 1940 balancing standard to guarantee vibration-free running and maximum stability at high RPMs.

What are the runout tolerances of the shaft and collet interface?

The internal shaft taper maintains a runout accuracy tolerance of under 0.003mm (3 microns), maintaining precise tool concentricity and preventing premature cutter wear.

What cooling precautions are built-in to prevent heat exhaustion?

Built-in temperature dissipation channels support continuous water/liquid cooling circulation or forced fan airflow, preventing thermal expansion of components.

Is this spindle motor compatible with standard VFD inverters and collets?

Yes, the spindle supports direct electrical integration with standard variable frequency drives (VFD) and accepts industrial ER collets (ER11, ER20, ER25, or ER32) to match standard toolholder dimensions.
